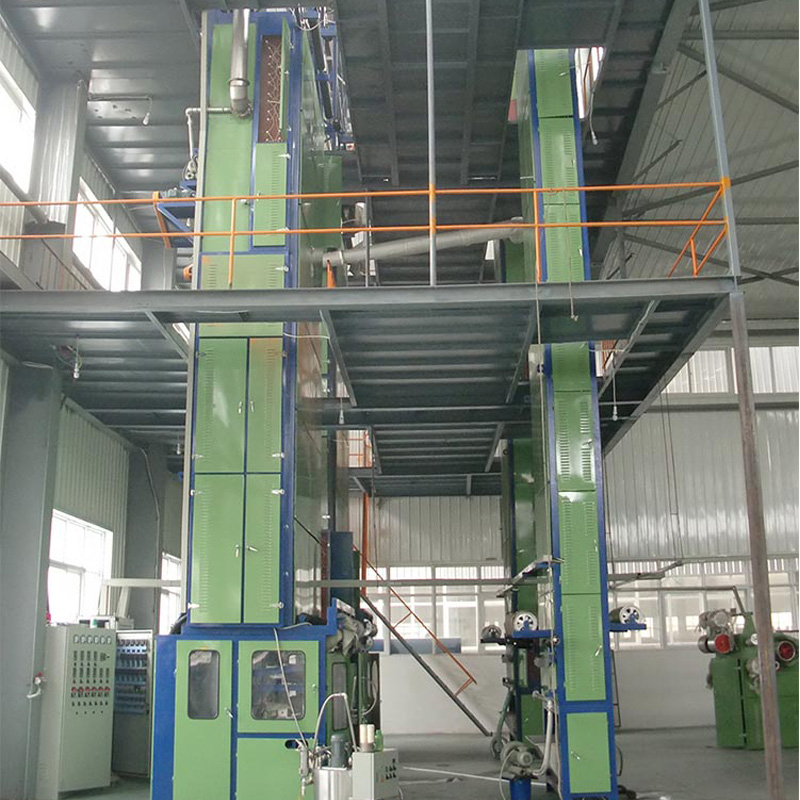

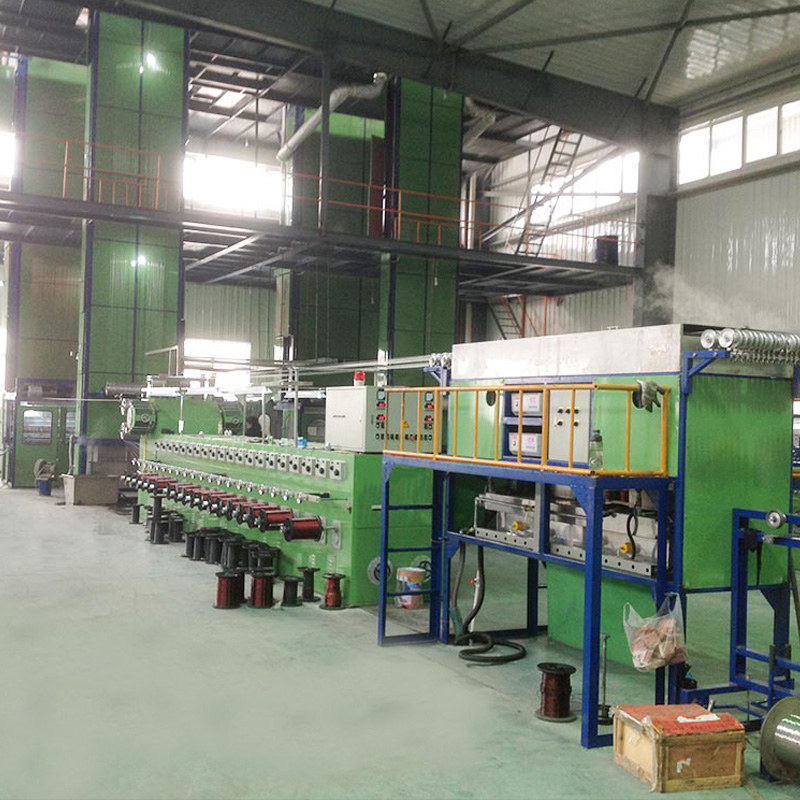

Vertical Enameling Machine
Description
This machine is used to produce wires larger than 0.8 mm in diameter. This machine adopts the latest R & D of “energy saving and environmental protection” type oven. The energy consumption is less than 200kwh/t.
2. Features
1. High Efficiency: PLC automatic control
2. Environmental protection: PLC auto exhaust value
3. Environment Data: VOC≤20mg/m³
3. Technical Parameters
|
Model |
LT-8000V-1/19*-6 |
LT-8000V-1/14*2-8 |
LT-8000V-1/8*2-9 |
|
Wire Range (mm) |
Cu: Φ0.80-1.50 Al: Φ0.80-1.80 |
Cu: Φ1.20-2.50 Al: Φ1.20-2.80 |
Cu: Φ0.80-1.30 Al: Φ0.80-3.5 |
|
DV Value |
25 |
25 |
25 |
|
Total DV |
950 |
700 |
400 |
|
Lines |
38 |
28 |
16 |
|
Inline Drawing |
/ |
/ |
/ |
|
Capstan |
2 |
2/4 |
2/4 |
|
Install Power (Kw) |
295 |
295 |
295 |
|
Out Put (Kgs/24Hrs) |
3300(Cu: Φ1.20mm) |
4240(Cu:Φ2.0mm) |
2420(Cu: Φ2.0mm) |
|
Power Consumption (KwH/24Hrs) |
1800-2000 |
2000-2200 |
2000-2200 |
|
Consumption/kg |
0.52KwH/Kg(Cu) |
0.42KwH/Kg(Cu) |
0.72KwH/Kg(Cu) |
|
Environment Data VOC (mg/m³) |
≤20 |
≤20 |
≤20 |
