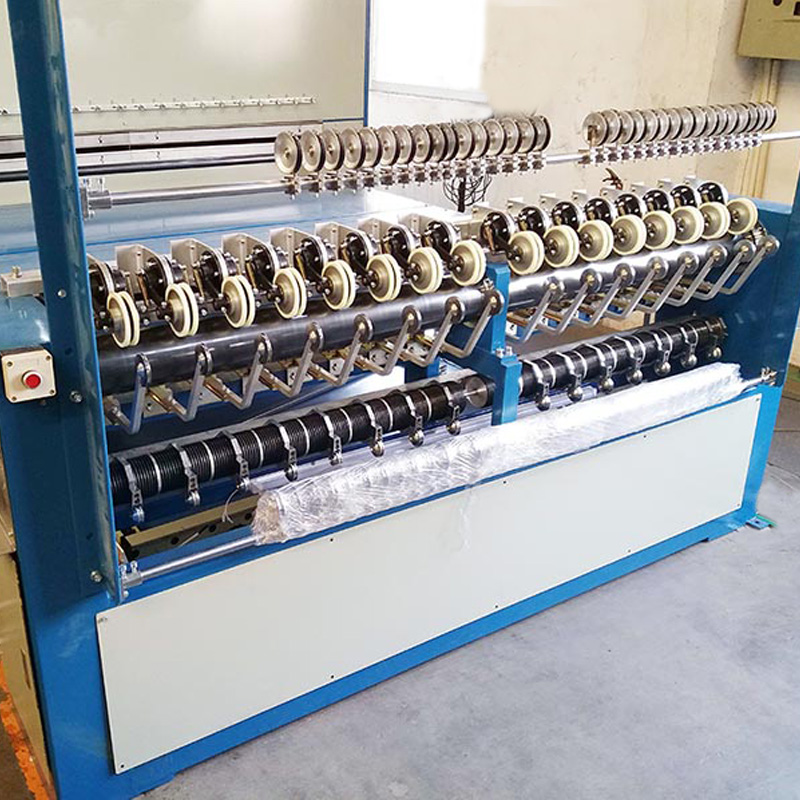

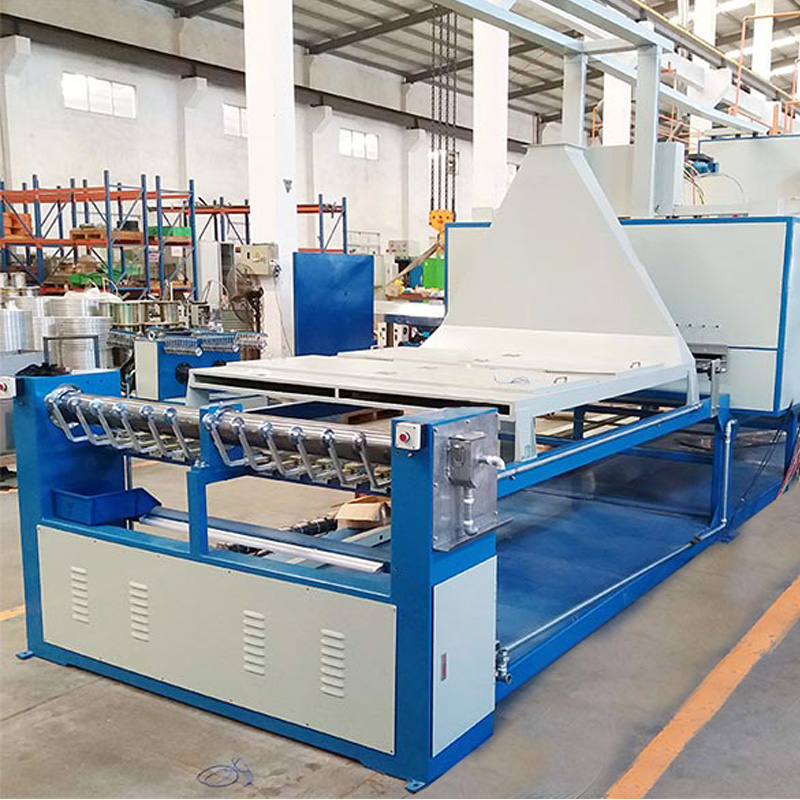

Horizontal Enameling Machine
Description
This machine is used to produce enameling wires below 0.8mm, commonly in fan motor wires, motor wires and transformer wires. It can produce 32 wires at the same time. It is even suitable for new factories and new operators for its simple operation.
2. Features
1. With special design, our oven takes full advantage of heat discharged. So our oven almost doesn’t consume the electricity.
2. PLC control for the 4 main control point of the oven to ensure the stability and not be affected by wire break.
3. Exhausted air is fully burned and clean to the air. So no energy loss from exhausting.
4. The structure and material using make sure burning fully under 700℃ for a long time.
3. Technical Parameters
|
Model |
LT-1T/2800-24/10-S |
LT-2T/3000-28/8-S |
LT-4T/4000-32/8-S |
LT-5T/4800-18/10-D(LD2) |
LT-6T/5200-18/10-D(LD2) |
|
Wire Range(mm) |
Φ0.04-0.07 |
Φ0.06-0.10 |
Φ0.10-0.30 |
Φ0.25-0.55 |
Φ0.40-0.80 |
|
DV Value |
24PU |
22/PU |
25/PE |
25/PE |
25/PE |
|
No. of Lines |
24 |
28 |
32/28/24 |
20 |
18 |
|
Max. Passes(Dual Coating) |
10 |
8 |
8 |
9 |
10 |
|
Wire Pitch(mm) |
5 |
5 |
6.5 |
7 |
8 |
|
Φ200-Φ250 |
Φ200-Φ300 |
Φ300-Φ400 |
Φ400-Φ630 |
Φ400-Φ630 |
|
|
Applicator Method |
Felt/Dies |
Felt |
Felt/Dies |
Felt/Dies |
Felt/Dies |
|
PT2-PT4 |
PT2-PT10 |
PT4-PT25 |
D(PT10-PT45)/LD2(PT25-PT270) |
D(PT10-PT45)/LD2(PT25-PT270) |
|
|
Ann. Oven Length(mm) |
3000 |
3500 |
6000 |
9000 |
9000 |
|
Max. Temp of Annealer(℃) |
450 |
450 |
500 |
500 |
550 |
|
Baking Oven Length(mm) |
2800 |
3000 |
4000 |
4800 |
5200 |
|
Catalyst |
Ceramic |
Ceramic |
Ceramic |
Ceramic |
Ceramic |
|
Install Power(Kw) |
110 |
115 |
125 |
145 |
155 |
|
Energy  Consumption(KwH/24Hrs) |
600-650 |
650-700 |
300-400 |
350-450 |
450-550 |
|
Out-put(Kgs/24Hrs) |
290(Φ0.05mm) |
540(Φ0.08mm) |
1600(Φ0.20mm) |
2000(Φ0.40mm) |
2370(Φ0.60mm) |
|
Operating Voltage |
380V-50Hz |
380V-50Hz |
380V-50Hz |
380V-50Hz |
380V-50Hz |
|
Consumption/kg |
2.06KwH/Kg |
0.88KwH/Kg |
0.25KwH/Kg |
0.22KwH/Kg |
0.222KwH/Kg |
|
Environment Data VOC(mg/m³) |
≤20 |
≤20 |
≤20 |
≤20 |
≤20 |
