Steel Wire Armouring Machine for Submarine Cables

Description

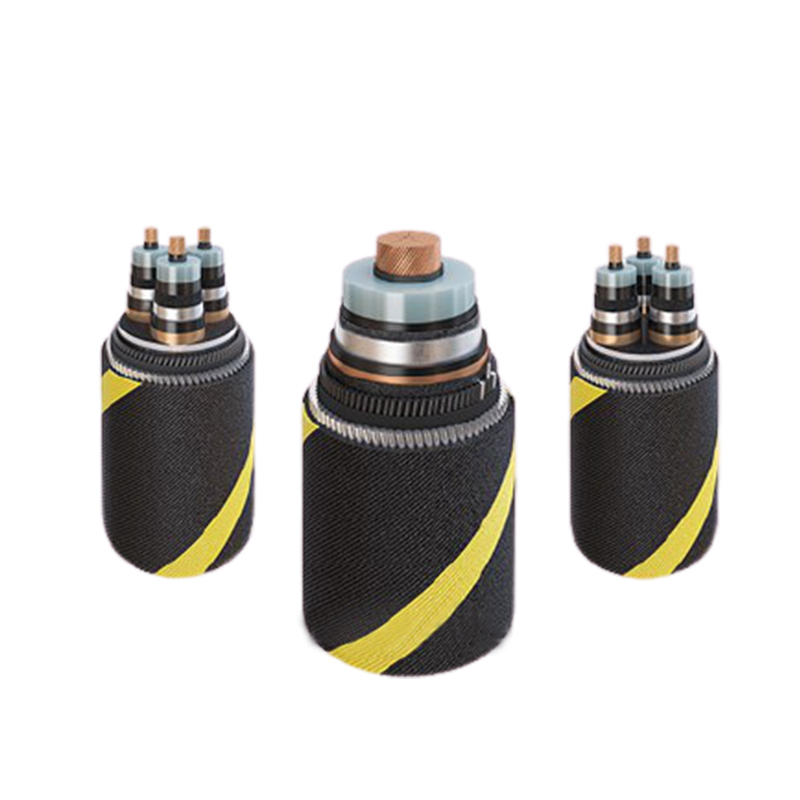

In recent years, with the rapid development of offshore wind power projects, offshore oil platforms, new island resources and the intercontinental communications, the demand for submarine cables and submarine optical fiber cables has increased day by day. Submarine cables and submarine optical fiber cables play a very important role in the information society and will be an important development direction for the optical fiber cable and electric wire and cable industry in the future.
Considering the complicated laying environment and service environment of the ocean, whether it is a submarine cable or a submarine optical fiber cable, it is basically necessary to adopt a structural type of steel wire armor to withstand the external force of the cable and optical cable during the laying and operation process, and protect its complete internal structure.
Steel wire armoring plays a very important role in submarine cables and submarine optical fiber cables. The quality of the armoring layer will directly affect its service life.

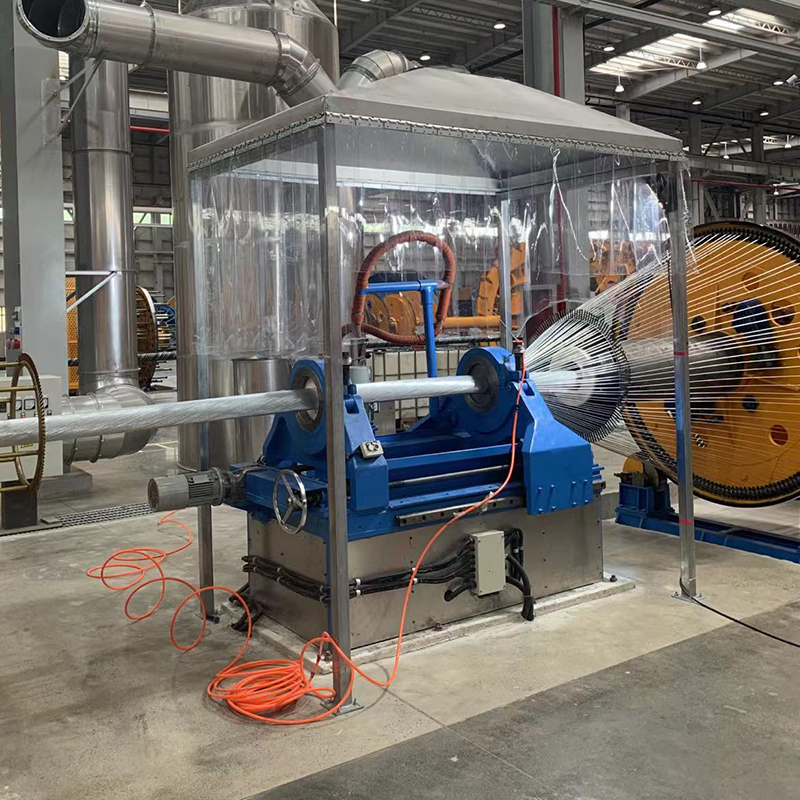

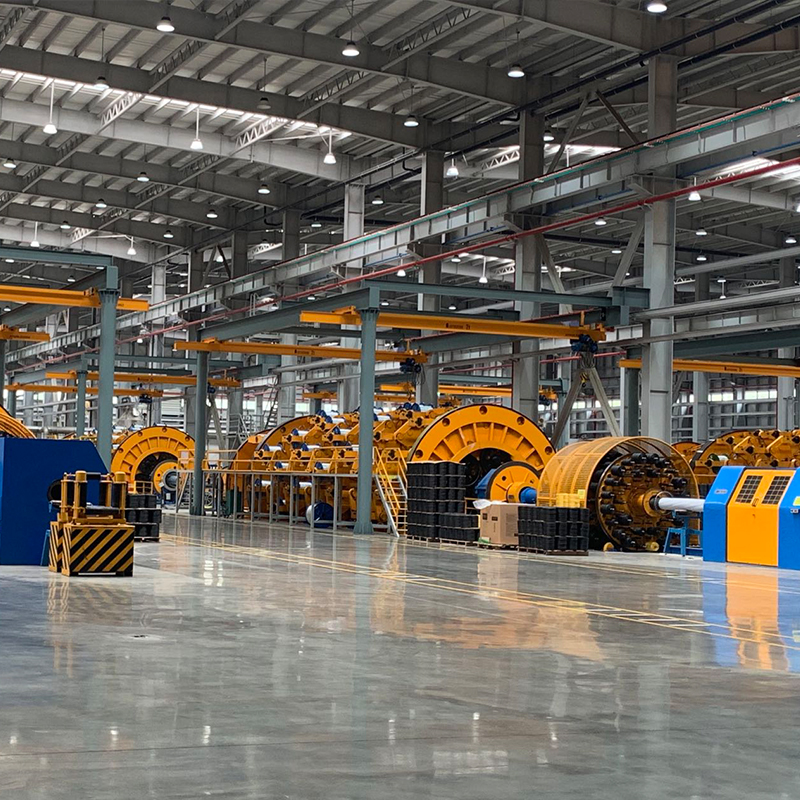

Our company has rich experience in the research & development and manufacturing of submarine cable and submarine optical fiber cable equipment. The steel wire armoring machine developed by our company adopts special structure design which is a cradle-type steel wire armoring machine that can realize 100% backtwist. It can be used for single-layer and double-layer steel wire armoring according to the product structure which is especially suitable for the inner armoring and outer armoring of submarine cables, submarine optical fiber cables and submarine photoelectric composite cables.
The steel wire armoring machine developed by our company is an individual motor type machine.
However, the traditional steel wire armoring machine generally adopts the ground shaft transmission type. This structure has many disadvantages: (1) The ground shaft transmission is an open transmission, with poor lubrication conditions, and dust and other foreign matters are easy to enter to cause the gear wear and damage, and the production site is noisy; (2) Adopting gear transmission with complicated structure, and the gap between the transmission gears is large, which is easy to movement shocks, and damage to the shaft, gears, and casing. At the same time, because of its complicated mechanical structure, the maintenance of the whole machine is more difficult; (3) Due to the limitation of the ground shaft, the speed of the twisting cage is low, and the production speed is difficult to increase, which restricts the production efficiency of armoring; (4) The gearbox has a constant speed ratio, and its pitch can only be changed within a limited range. It cannot be achieved if the pitch required by certain process designs.

2. Features

The individual motor type steel wire armoring machine we developed, each stranding cage and traction are driven by an individual motor with the following characteristics:
(1) Each component of the equipment is driven by an individual motor, with no cabinet, and low operating noise;
(2) Man-machine operation interface, the process parameters can be set and displayed on the operation screen, and can be modified online. Convenient operation improves the production efficiency effectively;
(3) The stranding pitch can be adjusted steplessly with wide pitch range, which is convenient for improving the production process;
(4) Adopting the planetary gear train structure, which can realize 100% full backtwist armoring.

3. Main Technical Parameters

The main technical parameters of the equipment are as follows:

Compared with the traditional ground shaft transmission type steel wire armoring machine, the individual motor type steel wire armoring machine abandons the multi-stage gearbox and the ground shaft transmission system, simplifies the complex mechanical structure of the whole machine, reduces the difficulty of mechanical maintenance and reduces the noise of production site. With wide range of pitch variation, which can realize the stepless adjustment of the pitch, facilitate the improvement of the production process, and meet the different requirements of the steel wire armoring process products.
