Power Cable Test Termination

  • Payment TermsT/T, L/C, D/P, etc.
  • Delivery Time90 days
  • Place of OriginChina
  • Port of LoadingShanghai, China
  • ShippingBy sea
  • HS Code9030331000
  • Package Size1600*1400*1300 (mm)
  • Warranty Period12 months
Contact an expert
Categories: ,
Description

Description

For power cable PD test, AC test, impulse test, tan delta test, etc.

2. Technical Parameters

There are two types:

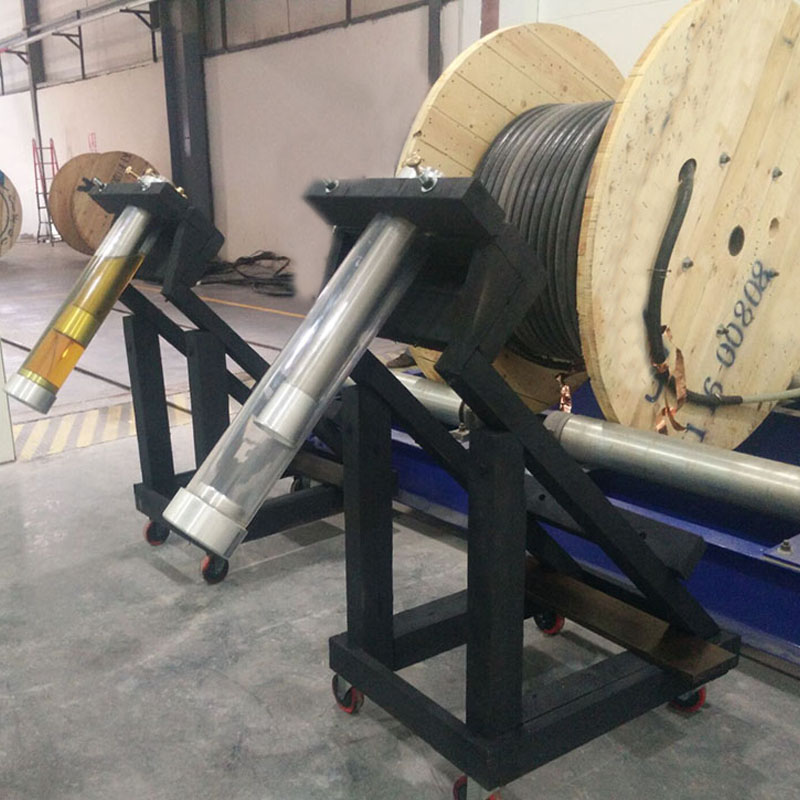

1. Oil test terminal (for XLPE cables under 35KV).
2. Deionized water terminal (for XLPE cables under 66KV-500KV).
The water terminal consists of epoxy resin out and inter tube. The water at HV side cycles in the inner tube around the cable and back to outer tube. The terminal is fixed on movable base by bearing and hydraulic unit, and can rise to 45° for test.
