Intermediate Wire Drawing Machine
Description
According to the requirement of the international market, we developed different types of gear type high speed medium wire drawing machine, which is similar structure to the Niehoff brand high speed drawing machine, it is suitable for drawing medium-sized copper conductors.
Our drawing machine is the leading wire drawing production line in domestic with high production efficiency, simple production process.
1. Features
1.1 Full-precision gear transmission, high transmission efficiency, low noise and few mechanical failures;
1.2 Lubricating method adopts tower wheel fully immersed structure, high assembly accuracy. Not only solves the disadvantages of the tower wheel being easy to groove and the surface of the wire is not beautiful, but also prolongs the life of the wire drawing dies and the tower wheel.
2. Main Technical Parameters
|
Model |
LT-Z17 |
LT-Z17B |
LT-Z17-280 |
|
Inlet wire diameter (mm) |
Max.3.5 |
Max.3.5 |
Max.3.5 |
|
Outlet wire diameter (mm) |
0.40～1.60 |
0.40～2.0 |
0.80～2.76 |
|
Line speed (m/min) |
Max.1800 |
Max.1800 |
Max.1800 |
|
Cone diameter (mm) |
Max.250 |
Max.250 |
Max.280 |
|
Fixed speed wheel diameter (mm) |
250 |
250 |
280 |
|
No. of dies |
Max.17 |
Max.17 |
Max.17 |
|
Mechanical elongation (%) |
Last die: 18.6%; Others: 25% |
Last die: 18.18%; Others: 13.38% |
Last die:18.6%; Others: 25% |
|
Annealer current (A) |
Max.1000 |
Max.2000 |
Max.3000 |
3. Drawing Effect
The copper intermediate wire drawing machine provided by our company can not only improve the production efficiency, but also simplify the production process. It is currently the leading production line in China.

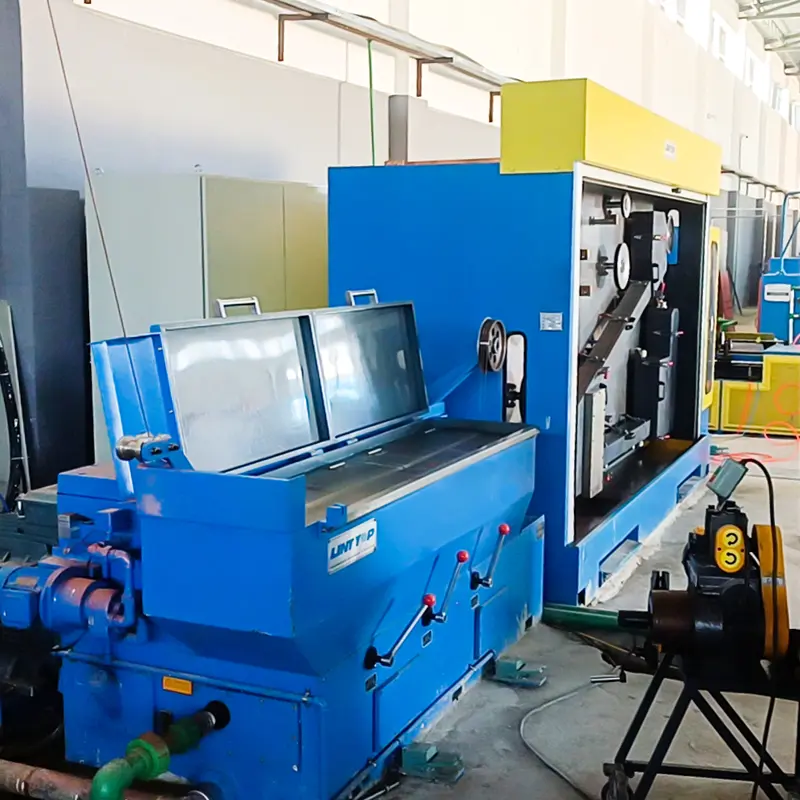

4. 4 Wires Intermediate Wire Drawing Machine with Continuous Annealer
4 Wires Intermediate Wire Drawing Machine with Continuous Annealer
Pay-off device
Wire drawing machine, Annealing machine and Take-up device
