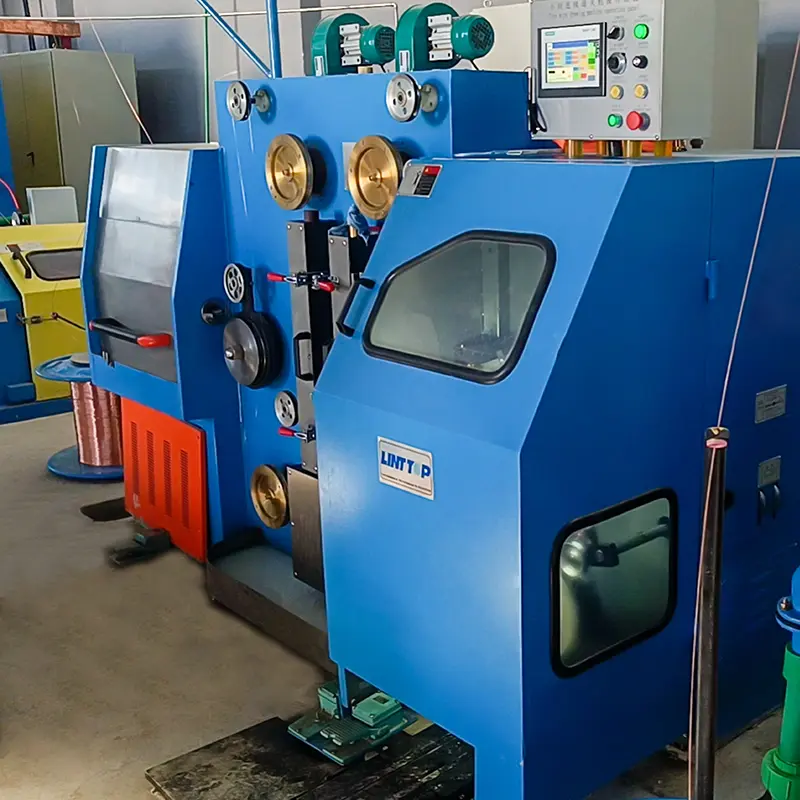

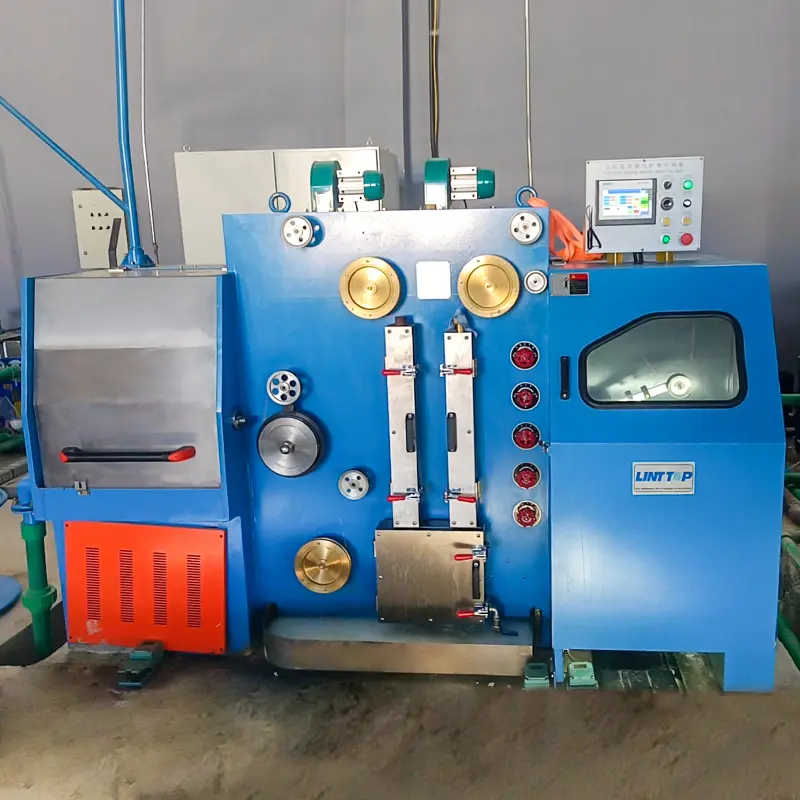

Fine Wire Drawing Machine
Description
In order to meet the requirements for drawing copper wires with smaller specifications, our company has carefully developed and designed a high-speed drawing machine, which is suitable for drawing copper wires with smaller specifications.
1. Equipment Features
The drawing tower wheel adopts a double-layer arrangement design with novel structure, effectively reducing equipment footprint;
All the tower wheels, counting wheels, wire guide wheel and traversing guide wheel are sprayed with ceramic, which effectively increases the service life of the equipment;
2. Main Technical Parameters
The main technical parameters are as follows:
|
Model |
LT-22 |
LT-24 |
LTD-16 |
LTD-22 |
LTD-24 |
|
Inlet diameter (mm) |
0.70～1.20 |
0.40～1.20 |
0.80～2.0 |
0.70～1.60 |
0.70～1.60 |
|
Outlet diameter (mm) |
0.10～0.32 |
0.10～0.32 |
0.30～0.80 |
0.15～0.60 |
0.15～0.60 |
|
Mechanical speed (m / min) |
Max.2400 |
Max.2400 |
Max.2000 |
Max.2000 |
Max.2000 |
|
Tower wheel dia. (mm) |
190 |
190 |
200 |
190 |
190 |
|
Fixed speed wheel dia. (mm) |
150 |
150 |
200 |
200 |
200 |
|
Number of dies |
Max.22 |
Max.24 |
Max.16 |
Max.22 |
Max.24 |
|
Mechanical elongation (%) |
Sizing die: 15% Other: 17.6% |
Sizing die: 13% Other: 17.6% |
Sizing die: 15% Other: 17.6% |
Sizing die: 15% Other: 17.6% |
Sizing die: 13% Other: 8% |
|
Annealing current (A) |
Max.240 |
Max.240 |
Max.800 |
Max.500 |
Max.500 |
3. The Drawing Effect
The copper fine wire drawing machine has the characteristics of small equipment footprint, high production efficiency, and low operating noise. It not only improves the production efficiency of wire drawing, but also simplifies the production process. It is currently the leading fine wire drawing production line in China.
