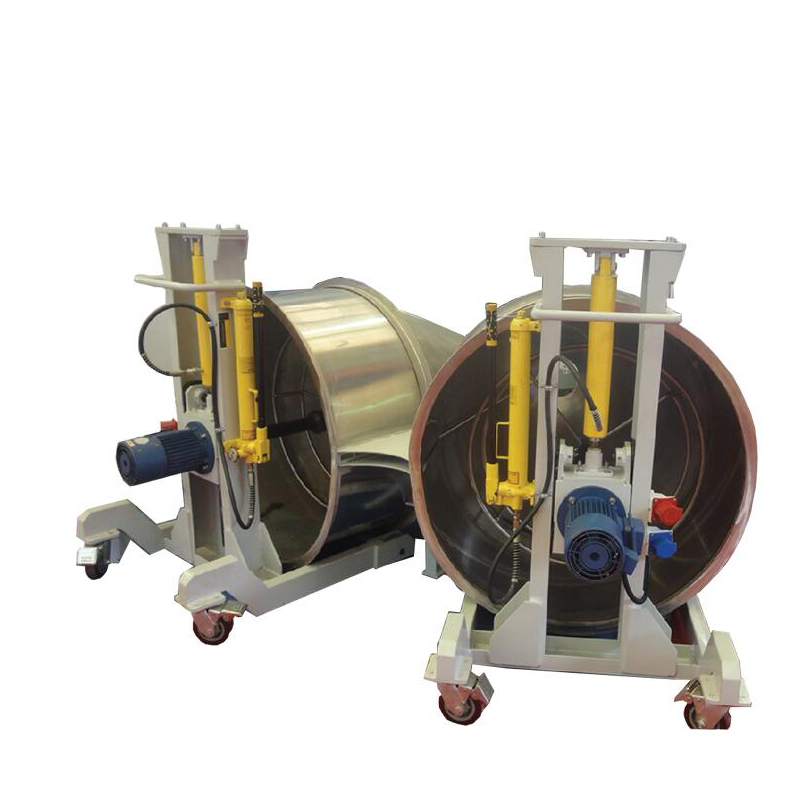

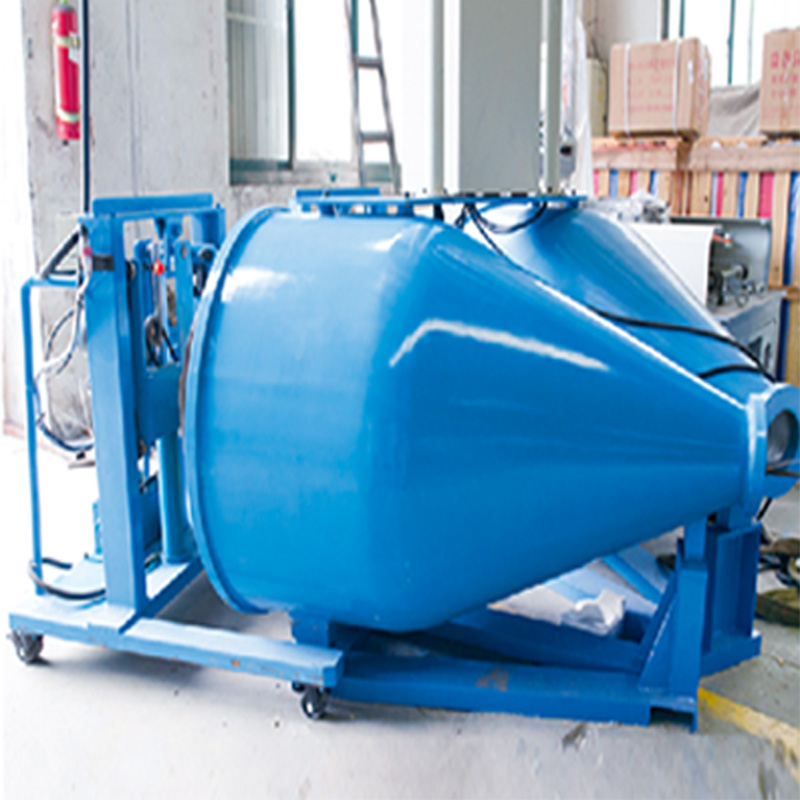

Dual Flyer Pay-off
Description
It is mainly used for continuous, noiseless and smooth pay-off conductors during high-speed extrusion production of wire insulation layers.
2. Structural Features
1) Consisting of two parabolic pay-off barrels made of cast iron or stainless steel.
2) The inner surface of the barrel is polished and has a longitudinal groove which allows the conductor to pass from one pay-off barrel to the other, completing continuous reel changes and ensuring continuous production.
3) Pay-off speed can be up to 1500 m/min.
3. Technical Parameters
|
Model |
630 |
800 |
1250 |
|
Applicable bobbins（mm） |
Φ500～Φ630 |
Φ630～Φ800 |
Φ1000～Φ1250 |
|
Load capacity (kg) |
max.500 |
max.800 |
max.2500 |
|
Applicable wire diameter（mm） |
0.6～5.0 |
0.6～5.0 |
3.0～10.0 |
|
Pay-off speed (m/min) |
max.1500 |
max.1500 |
max.1000 |
|
Barrel material |
Cast iron/stainless steel |
Cast iron/stainless steel |
stainless steel |
