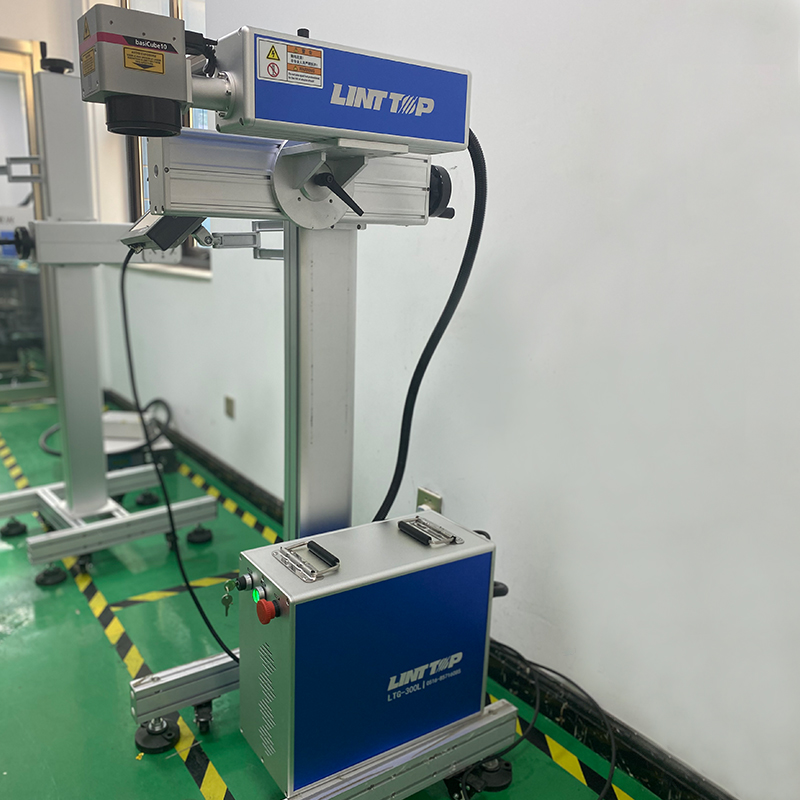

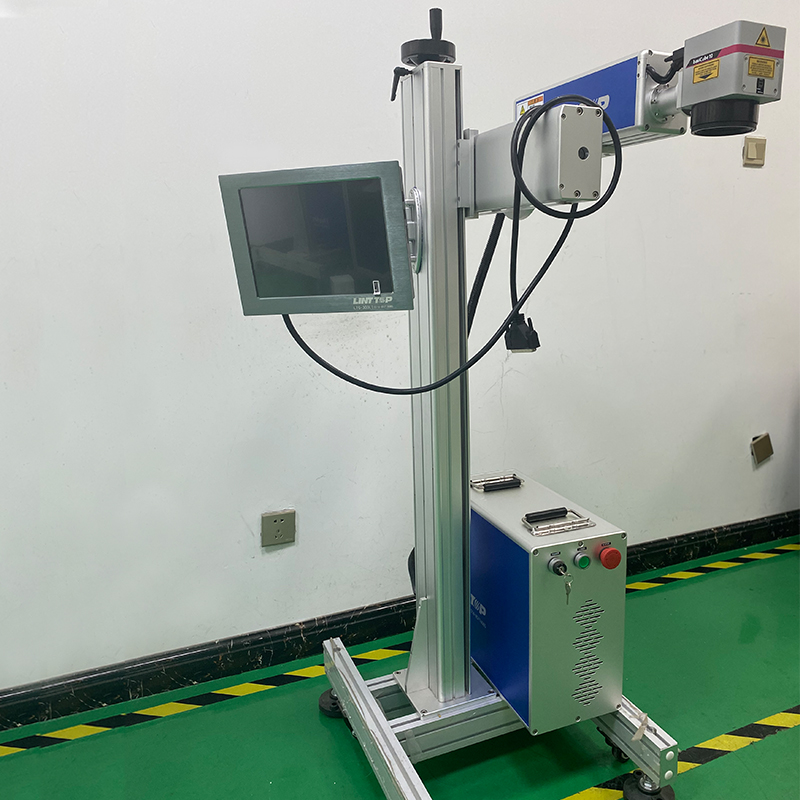

Cable Laser Marking Machine – TripleArcSolutions

Description

Laser marking for cable surface is a new type of cable marking method. Laser marking is a non-contact marking method that uses a very fine laser beam which is focused to produce high energy for marking.

Laser marking has the following characteristics.

1.No consumables (No ink, cleaning agent, etc.), free-maintenance.

2.Clear marking, firm performance, will not easily wear flat, will not fall off.

3.Low power consumption, no pollution, easy to operate (plug and play).

4.No mechanical extrusion in the marking process, will not cause cable deformation.

2. Product features

1. 6th Special laser control system with easy operation;

2. Quickly switch marking contents during work;

3. Adjust words spacing in real time for highest accuracy;

4. Minimize wire loss (<100mm) during quick codes changing in 1 second;

5. Quickly clear meter value;

6. Anti-misprint system with QR code scanner.

3. Technical Parameters

Series		LTG series		LTC series		LTU series
Light source		Fiber		CO₂		UV
Main models		LTG-200S/LTG-300S	LTG-300L	LTC-300M	LTC-600M/LTC-800H	LTU-350LL/LTU-360M
Laser brand		MAX (Shenzhen Maxphitonics)	MAX (Shenzhen Maxphitonics)	USA Coherent	USA Coherent or USA Synrad	SingaporeJPT
Laser power (W)		20/30	30	30	55/70	5
Laser wavelength (nm)		1064	1064	10600	10600	355
Lifetime of laser (h)		100000	100000	30000	30000	20000

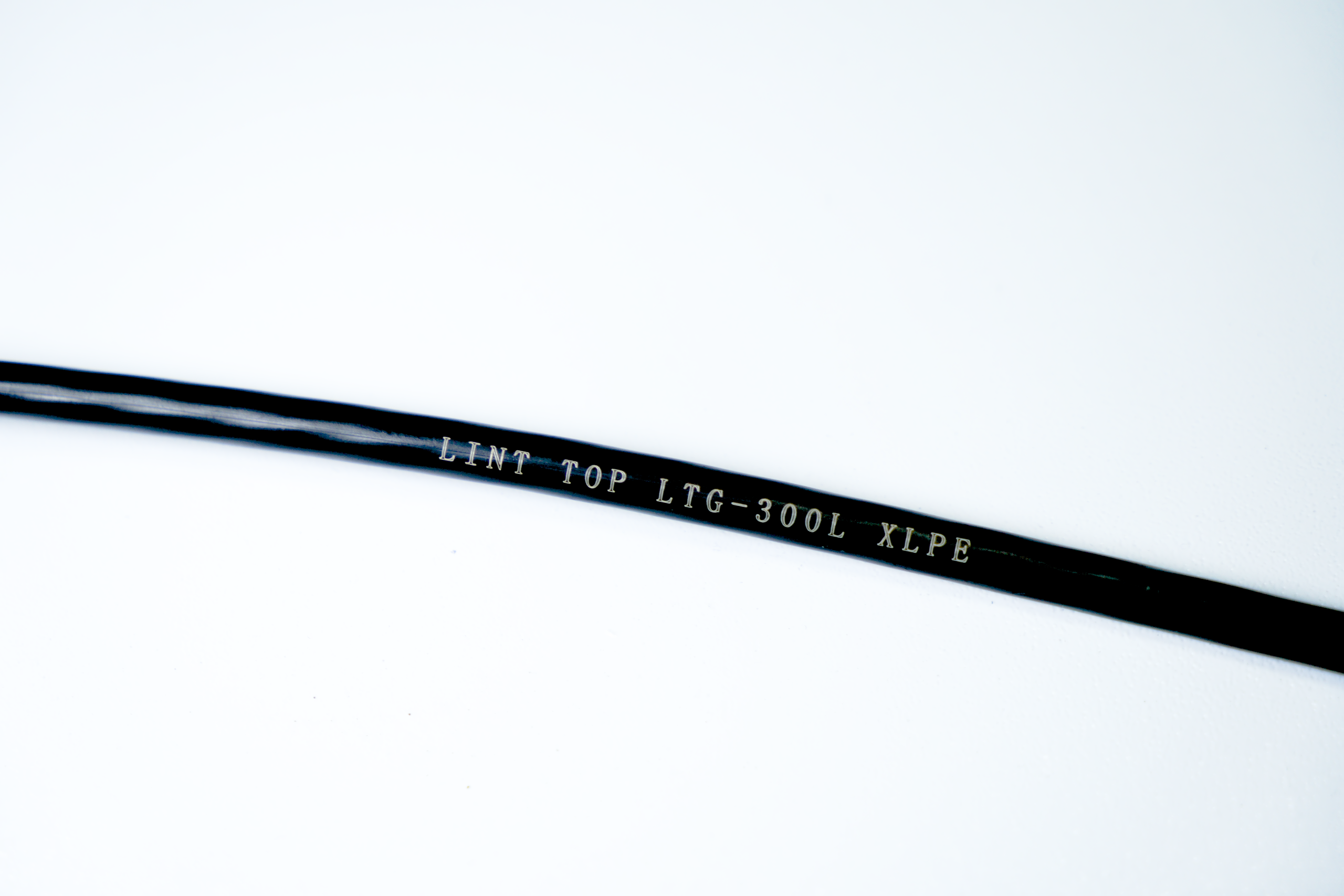

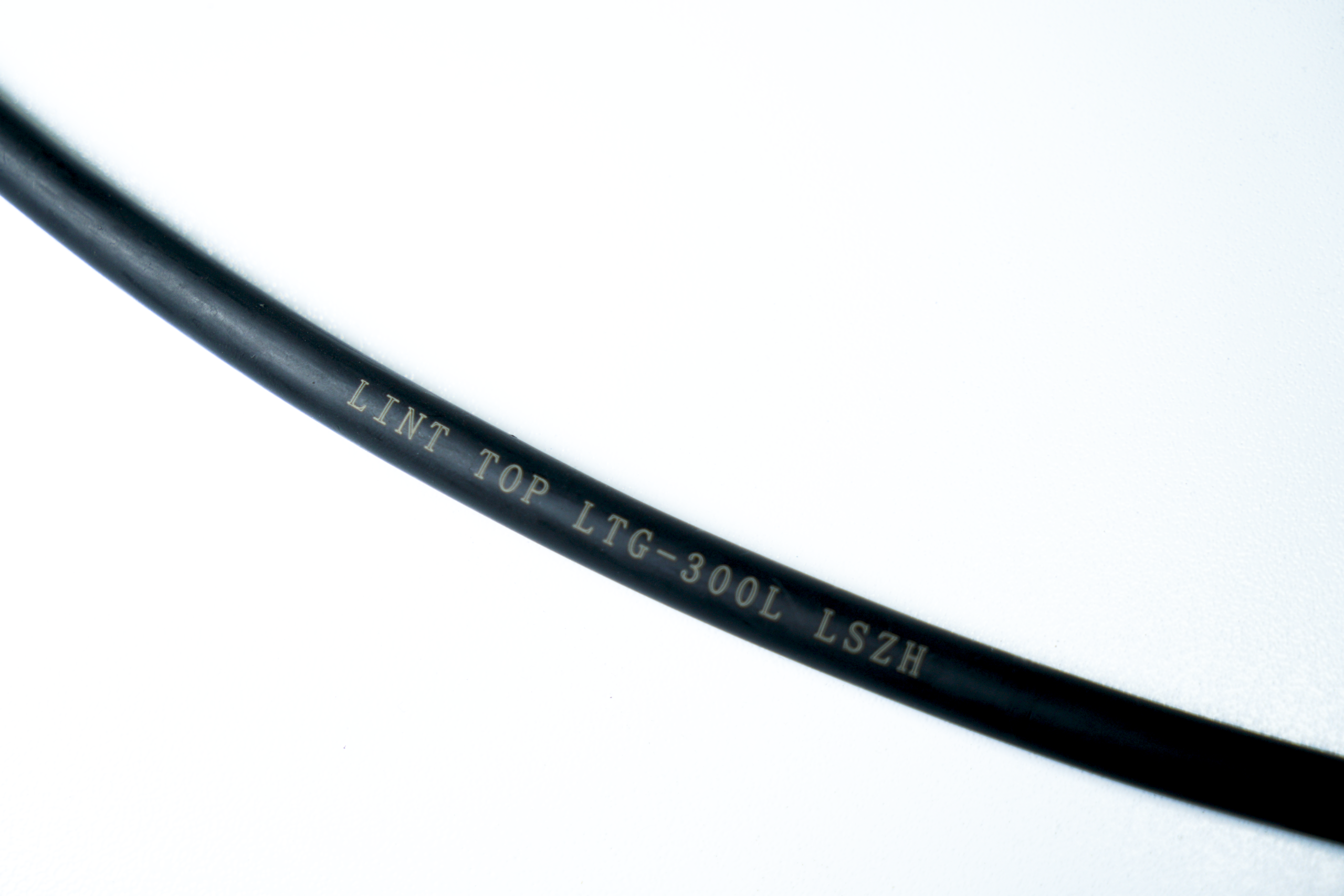

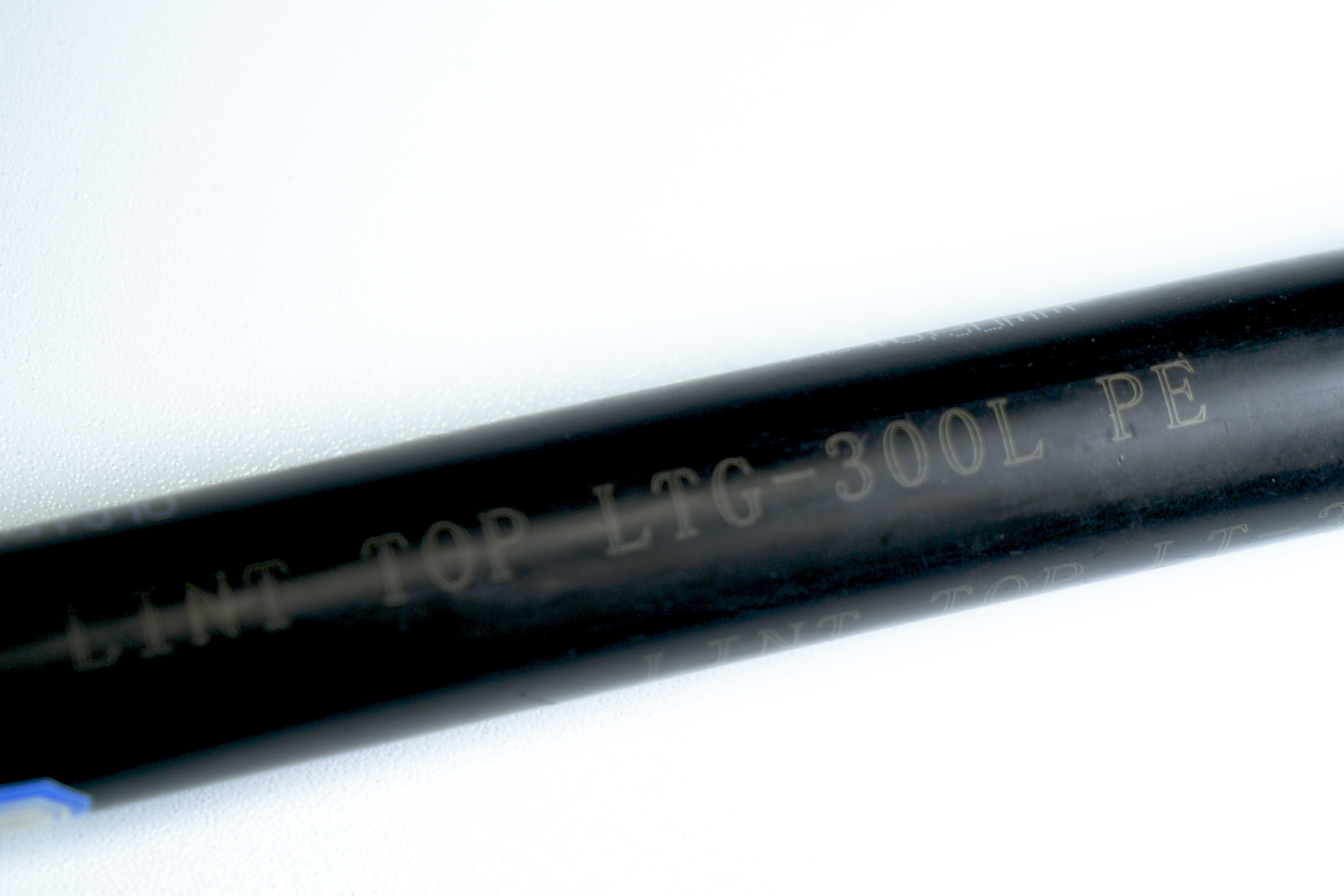

Suitable materials		Black (PVC, XLPE, PE, TPU, LSZH, Fluoroplastic) and metal		PVC and rubber (But not silicone rubber) in all colors, partial TPE materials		Fluoroplastic, rubber (Including silicone rubber), PVC, XLPE, LSZH, TPU, etc.
		Note: The marking effect shall be subject to the final sample test due to different materials and formulations.
Printing color		Pale-yellow or light white		Yellow		White, pale-yellow, black
Max. marking speed (m/min)	Double–line word	60	80	60	80	80
	Single–line word	120	150	100	150	150
	Code	180	280	180	500	280
	Note: The marking speed is subject to the final sample test due to the influence of printing content (font size, word spacing) and material’s light absorption performance.
Cooling method		Air-cooling	Air-cooling	Air-cooling	Air-cooling	Water-cooling
Power supply		220V, 50Hz/60Hz, 10A
Power regulation		10%-100%
Marking Types		Chinese, English, numbers, symbols, patterns, single-line characters, multiple language fonts, dot matrix characters, images, LOGO, arbitrary vector graphics, and thousands of built-in fonts, automatic serial number, batch number, real-time time, random code, one-dimensional code, QR code, etc.
Marking fonts		Including all TTF fonts, and hundreds of special fonts for laser marking (Including 3 types of dot matrix fonts). You can also make your own special font library.
Interface		Ethernet, USB, RS232 connect controller, TCP/IP can communicate with the upper computer instantly, accept the control of the control center at any time, and accept the data information sent from the control system at any time for marking.
Operating system		The fifth-generation special laser control system for cable (With the function of wire code marking).
Operating mode		10 Inch industrial touch screen
