AC Voltage Withstand Test System

  • Payment TermsT/T, L/C, D/P, etc.
  • Delivery Time90 days
  • Place of OriginChina
  • Port of LoadingShanghai, China
  • ShippingBy sea
  • HS Code9030331000
  • Container Load1*20GP
  • Warranty Period12 months
Contact an expert
Categories: ,
Description

Description

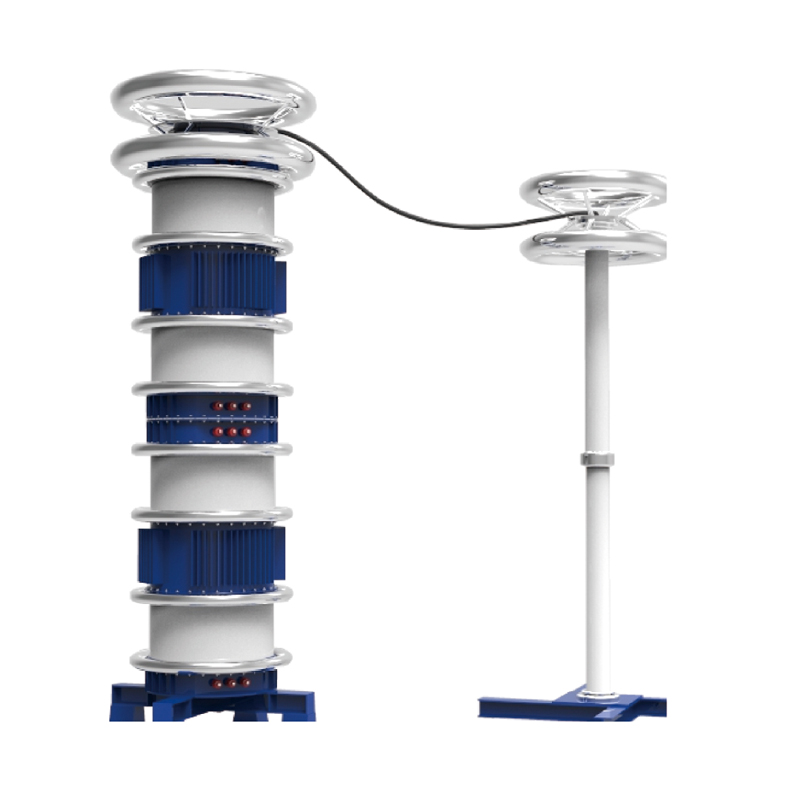

The AC voltage test system is mainly used for power cable, electric transformer, HV  instrument transformer, HV switch, etc. The test items include AC voltage test, PD test  and electric aging test.

2. Components

1. Test transformer
2. LV filter
3. Coupling capacitor
4. Digital PD detector
5. Double shielded isolated transformer
6. HV capacitive divider
7. Contact type regulator
8. Digital control desk

3. Technical Parameters

1. Rated voltage: 1.0KV-1500KV (and above)
2. Rated capacity: 1.0KVA-1500KVA (and above)
3. Noise: ≤65dB (2m away from equipment)
4. Operation duty: At rated capacity, 1 hour on, 1 hour off, 3-6 times one day. Continuously working at 50% of rated capacity
5. PD level: 80% of rated voltage, PD ≤ 2pC (or smaller as users required) (or other duration according to test requirement).
